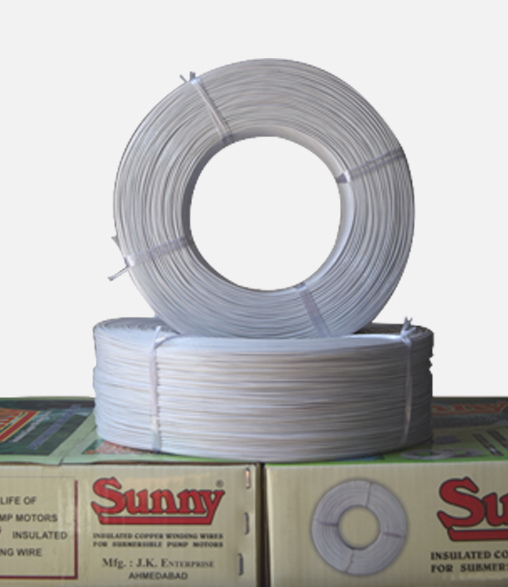

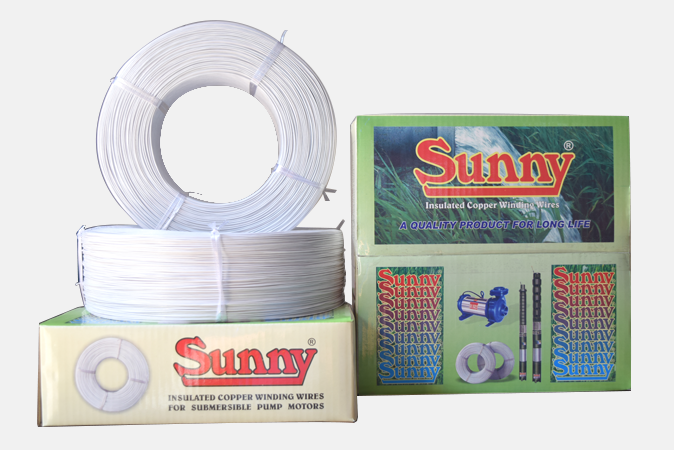

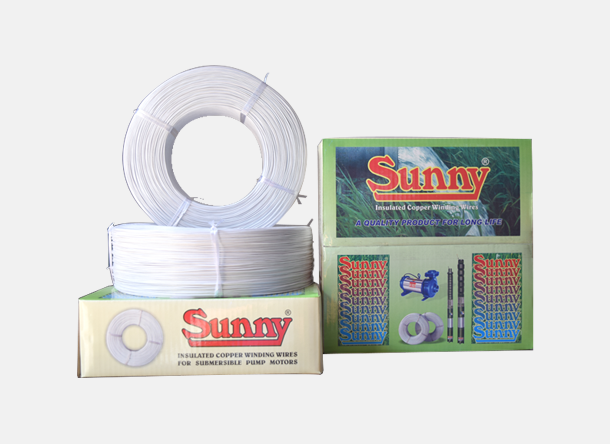

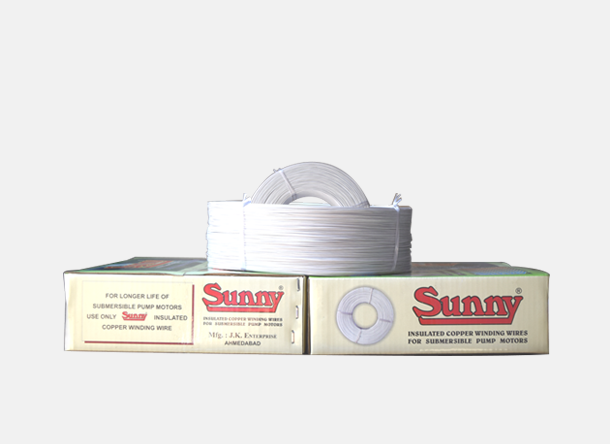

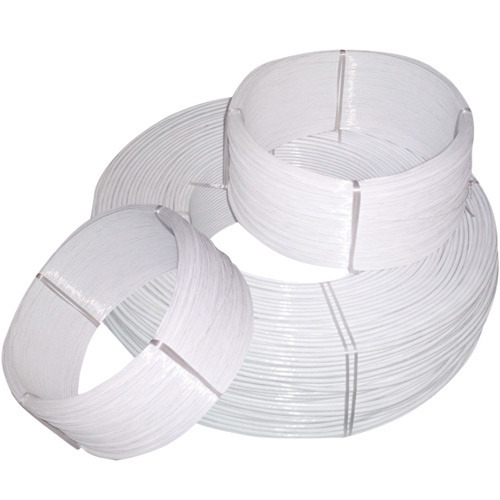

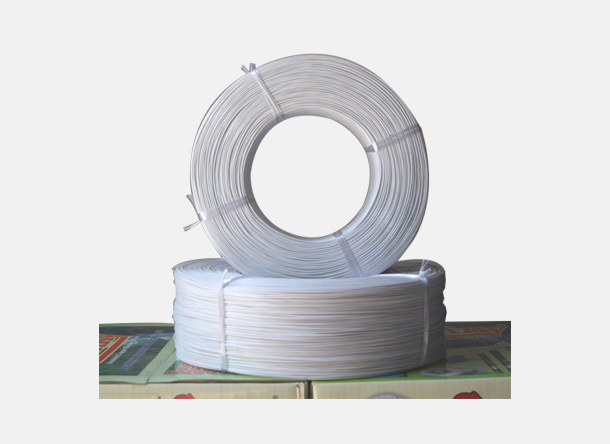

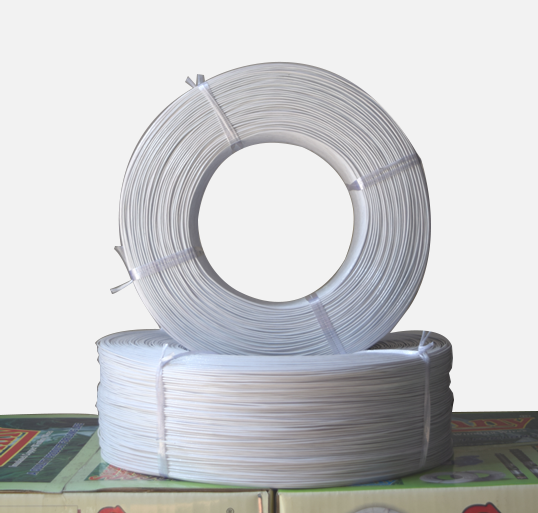

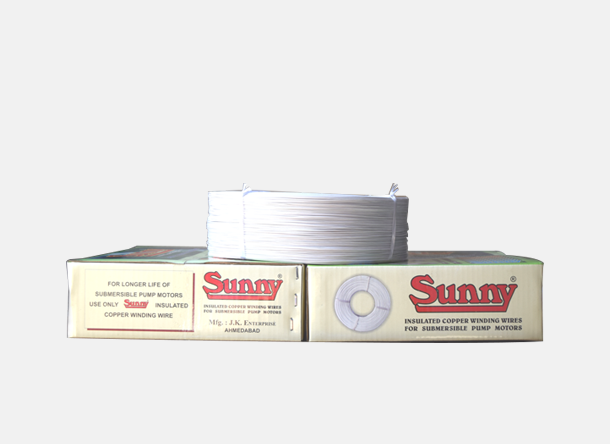

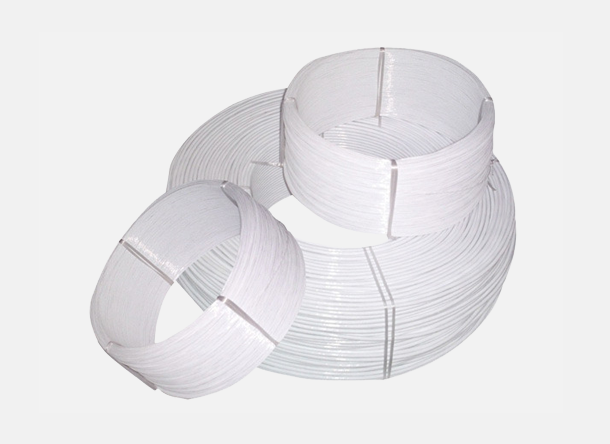

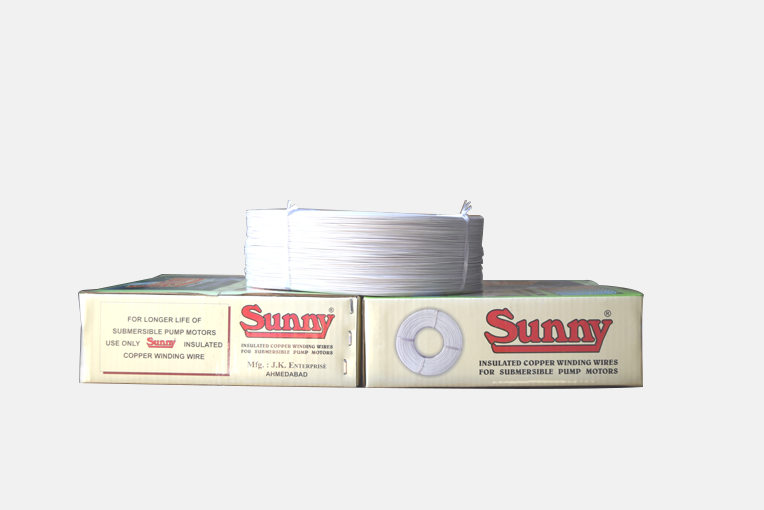

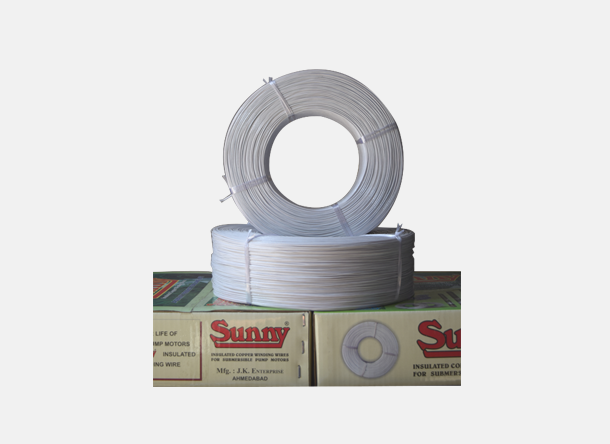

“Sunny” submersible winding wire is made with excellent quality raw materials such as EC grade copper, BOPP and polyester coating films with high electro-mechanical, chemical and thermal properties in compliance with industry standard - IS 8783:1995. It ensures long life and durability of our submersible winding wire and also improves overall life of your submersible pump motors.

“Sunny” submersible winding wire is more popular than other competitors because of lowest failing rate and promised quality.

Applications:

Submersible winding wires are used in domestic and agricultural applications. Depending upon the application and specification of pump and motor, size of the wire is used. Our manufacturing facility is equipped to produce smallest size of 0.4mm to as high as 3.0mm to cover small domestic needs to heavy industrial and agricultural use.

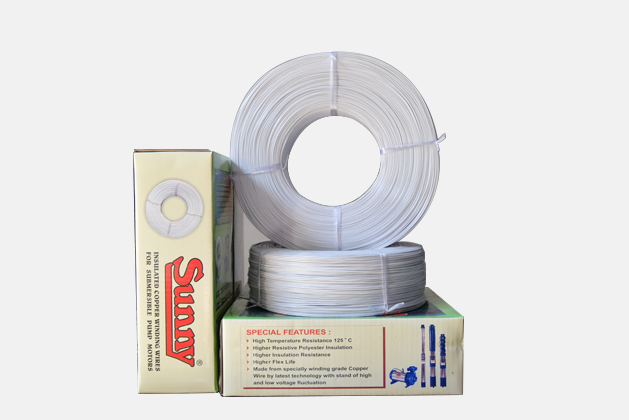

Salient Features of “Sunny” Submersible Winding Wire

High temperature resistance (125⁰ C)
High resistive polyester insulation
Higher insulation resistance provides lowest current leakage
Higher flex life
Uniform insulation coating
Made from special winding grade copper wire by latest technology
Safe to voltage fluctuation.

Specification

Nominal Conductor Diameter (mm)	Nominal Resistance at 20⁰ C (Ohms/KM)	Cross-Sectional Area (mm2)	Elongation Minimum (%)
0.4	140	0.126	24
0.5	89.60	0.196	25
0.6	62.20	0.283	26
0.7	45.70	0.385	28
0.8	35	0.502	28
0.9	27.60	0.636	29
1.0	22.40	0.785	30
1.1	18.50	0.950	30
1.2	15.50	1.130	31
1.3	13.20	1.330	32
1.4	11.40	1.540	32
1.5	9.95	1.770	32
1.6	8.75	2.010	32
1.7	7.75	2.270	32
1.8	6.91	2.540	32
1.9	6.20	2.840	32
2.0	5.60	3.140	33
2.1	5.08	3.460	33
2.2	4.63	3.800	33
2.3	4.23	4.150	33
2.4	3.89	4.520	33
2.5	3.58	4.910	33
2.6	3.31	5.307	34
2.7	3.07	5.723	34
2.8	2.86	6.154	34
2.9	2.66	6.602	34
3.0	2.49	7.065	34
